Product Introduction:
The YINGMI Electronic Nameplate is an eco‑friendly, reusable digital nameplate designed for modern meetings, conferences, and office environments. Using energy‑efficient e‑paper display technology, it shows crisp black/white/red content on both sides without constant power. Update information instantly via Bluetooth—no paper, no wiring, no waste.
Product Parameters (Specification):
| Parameter |
Specification |
| Model |
SID‑ETC‑03C |
| Display Technology |
E‑Paper (E‑Ink) |
| Screen Size |
7.5‑inch (161 × 97 mm viewing area) |
| Resolution |
800 × 480 pixels |
| Display Colors |
Black / White / Red (3‑color) |
| Viewing Angle |
Nearly 180° |
| Dual‑Screen |
Yes, both sides can show different content |
| Communication |
Bluetooth 5.0 |
| Wireless Range |
Up to 5 meters (phone to device) |
| Power Supply |
Built‑in battery (CR2450) |
| Operating Voltage |
3.0V (min 2.3V) |

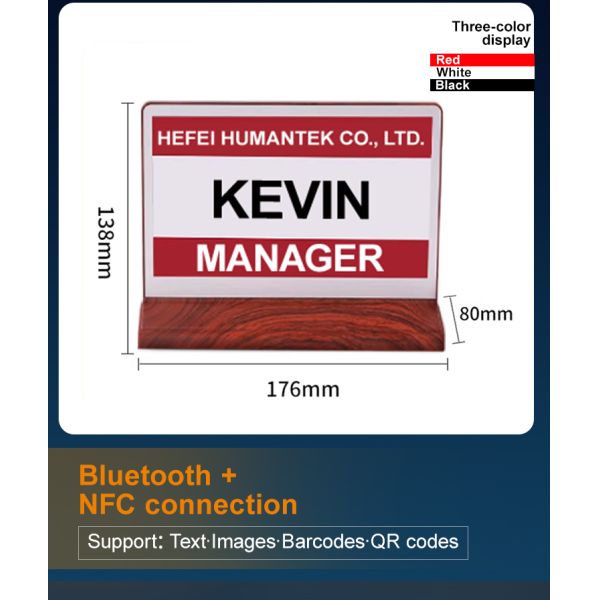

| Dimensions |
176 × 80 × 138 mm |
| Weight |
320 ± 5g |
| Material |
ABS + PC, silver / wood‑grain finish |
| Operating Temperature |
0°C to 50°C |
| Refresh Method |
Bluetooth via PC software or mobile app
|
Product Feature and Application:
Core Features
-
Dual‑Sided E‑Ink Display: Show different information on each side; clear visibility from any angle
-
Instant Wireless Updates: Change content via Bluetooth in seconds—no cables, no re‑printing
-
Ultra‑Low Power: Only uses power when refreshing; content stays on screen without electricity
-
Eco‑Friendly Design: Replaces disposable paper cards; reduces paper waste and carbon footprint
-
Professional Appearance: Sleek silver or wood‑grain finish suitable for formal settings
Application Scenarios
-
Conference rooms, board meetings, corporate events
-
Hotels, banquet halls, wedding table plates
-
Exhibitions, trade shows, seminar seating
-
Government meetings, diplomatic receptions
-
University lectures, training workshops
-
Smart office and paper‑less initiative projects
Product Details:
Dual-sided Display: Supports displaying different content on sides A and B simultaneously with personalized templates.
High-Quality Build: Made of durable ABS and PC materials with a premium finish in silver or wood grain.
Eye Protection: Paper-like display provides a comfortable viewing experience similar to traditional paper.
Packing and Shipping:
Packing
Packaging Details: Standard export packing. One unit with one independent box.
Shipping
DHL/FedEx/UPS/EMS: 3-7 workdays
FAQ:
Q: How do I update the text on the desk plate?
A: Use the free PC software or mobile app, connect via Bluetooth, and send new text/images—takes less than 10 seconds.
Q: How long does the battery last?
A: With normal use (several updates per day), the CR2450 battery can last 1–2 years before replacement.
Q: Can I display logos or custom graphics?
A: Yes, the software supports images, logos, and formatted text in black, white, or red.
Q: Is the screen readable in bright light?
A: Yes, e‑paper reflects ambient light like real paper—it becomes clearer in bright conditions.
Q: Can I use hundreds of these in one conference hall?
A: Yes, each plate has a unique ID. The software supports batch updating for large deployments.
|
|
Smart Dual-Screen E-paper Electronic Table Sign Images
|
